Artusa manufacturing · our own factory · since 2005
Gabions: hexagonal double-twist mesh, made to size in our own factory.

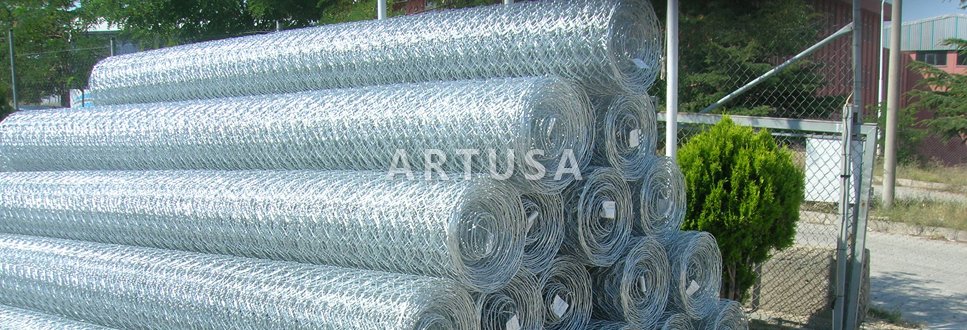

A gabion is a wire-mesh basket filled with stone on site: a flexible, free-draining gravity structure. Box gabions for retaining walls and slope toes; mattresses (reno type) for river beds, banks and slope faces. We weave the hexagonal double-twist mesh in our own factory and deliver every batch with a test report.
Gabions: a decision in four steps.
This domain is Artusa's Gabions gateway: a short route, one page. Calculation tools, specification texts, answers and field photographs live on the main site, www.artusa.com.tr; each step links there.
Choose the form
Box gabion for retaining walls, stepped fills and slope toes; mattress for river beds, culvert outlets, banks and slope faces exposed to scour.
Gabion page (Turkish) →Specify mesh and coating
Mesh opening, wire diameter and coating follow EN 10223-3 / EN 10244-2; in marine or industrial atmospheres choose Galfan or the PVC-coated wire.
Hexagonal double-twist mesh (Turkish) →Stone and filter
Natural, hard, frost-resistant stone larger than the mesh opening; a geotextile filter behind retaining structures; exposed faces hand-placed.
Slope stabilization →Install and accept
Baskets assembled on site, corners and neighbours laced, bracing wires per layer, lids laced; acceptance checks mesh, wire, coating, lacing and stone. Measured in m³ (boxes) or m² (mattresses).
Manufacturing →
Dimensions and material.
The values are the acceptance criteria of our hexagonal-mesh specification on the main site; other mesh sizes, wires and dimensions are made to order.
| Property | Box gabion | Mattress |
|---|---|---|
| Mesh opening | 100 × 120 mm | 60 × 80 mm |
| Wire diameter (mesh) | 2.70 mm | 2.00 mm |
| Mesh tolerance (short side) | +16 % / −4 % | +16 % / −4 % |
| Wire strength | 350–500 N/mm², elongation at break ≥ 10 % | same |
| Coating | Galvanized or Zn95Al5 (Galfan), EN 10244-2 class A | same |
| PVC option | Wire diameter +1.0 mm (Ø2.70 → 3.70), EN 10245-2 | Ø2.00 → 3.00 |
| Stone fill | Natural, hard, frost-resistant, low porosity; larger than the mesh opening | same |

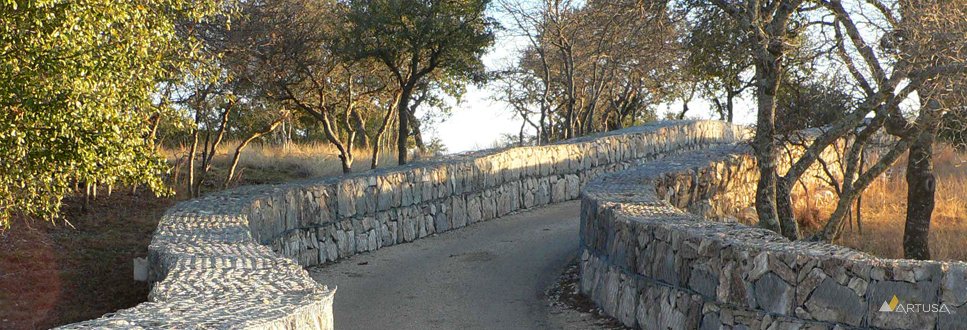

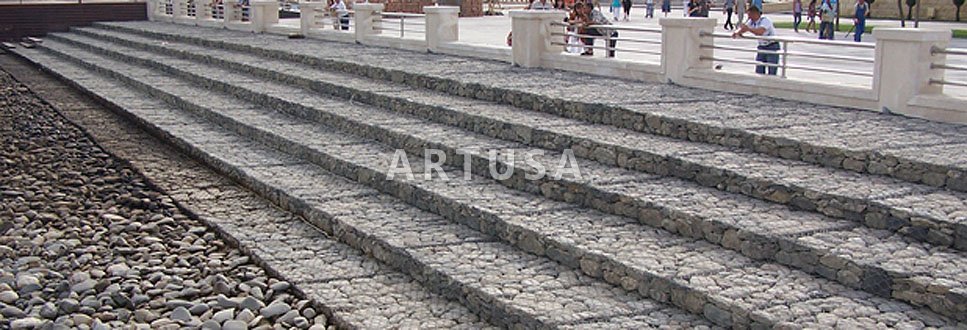

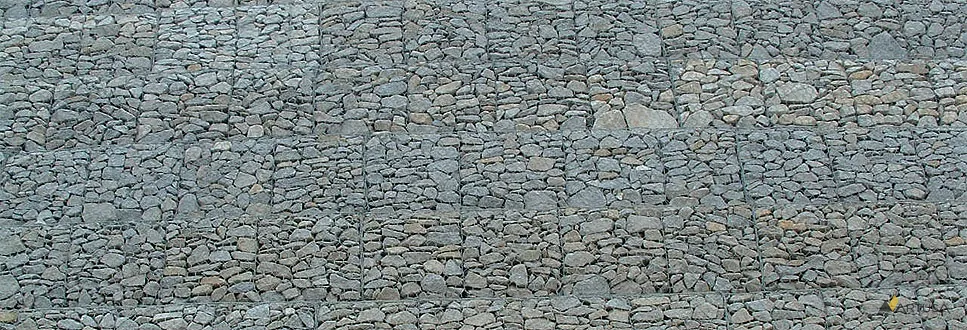

From the field.
Photographs by our own crews; project names and clients are not published for confidentiality.
Continued on the main site.
Tools, specification texts and answers are kept in one place so every gateway leads to the same verified information.
